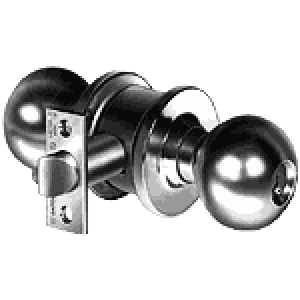

| Door knob / lever set |
| Model: series 160 |
6 Line is a highly styled standard duty lock line incorporating a broad spectrum of functions, designs, and finishes, built to conform to Federal Specification Series 160.
They are completely reversible either before or after installation.
The 6 Line is ideally suited for:
· Fine homes
· Motels
· Apartment houses
· Small commercial buildings
Features and Benefits:
· For doors 1 3/8 in. to 1 3/4 in. thick
· 2 3/8 in. backset. Can be furnished to order with 2 3/4 in., 3 3/4 in. and 5 in. backsets.
· Steel cylindrical housing with zinc-dichromate finish
· Front: brass, bronze, stainless steel; 2 1/4 in. x 1 in.
· Strike: curved lip, No. 600, ANSI A115.3 brass, bronze, stainless steel; with wrought steel box
· Non-cylinder set universal. Cylinder sets can be reversed easily in the field. Interchangeable core sets are handed and should be specified RH or LH.
· Brass latchbolt with 1/2 in. throw, UL Listed
· Two keys
· Brass 6 pin cylinder
· Can be masterkeyed or grandmaster keyed
· Finishes: 3, 10, 10B, 26, 26D
|
|
|
 |
|
|
|
